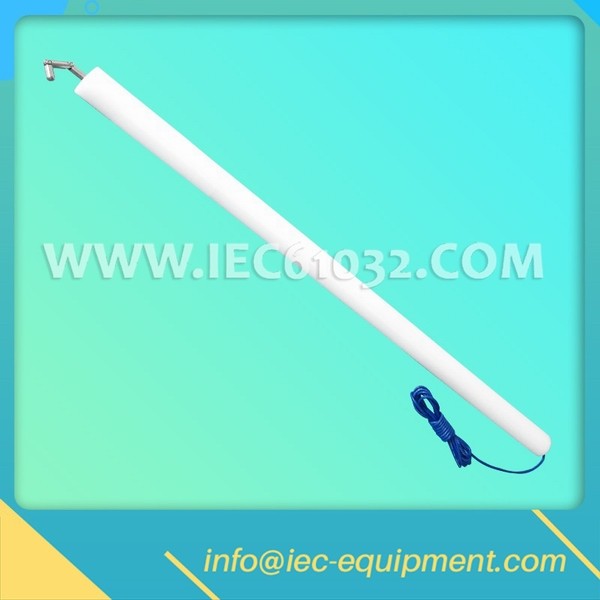

Test Probe 19 of IEC 61032

The Test Probe 19 of IEC 61032 Figure 13 used to simulate a children human finger, It is also used by the standards of CSA, IRAM, UL. IEC 60335, IRAM 4220-1 and in most of the rules involved in the verification of accessibility to live parts.

Technical Parameters:

1. Knurled Finger Diameter: 5.6 mm

2. Knurled Finger Length: 44 mm

3. Head Radius: 2.8 mm

4. The First Headle Diameter: 25.9 mm

5. The First Headle Length: 101.6 mm

6. The Second Headle Diameter: 25.4 mm

7. The Second Handle Length: 464.3 mm
