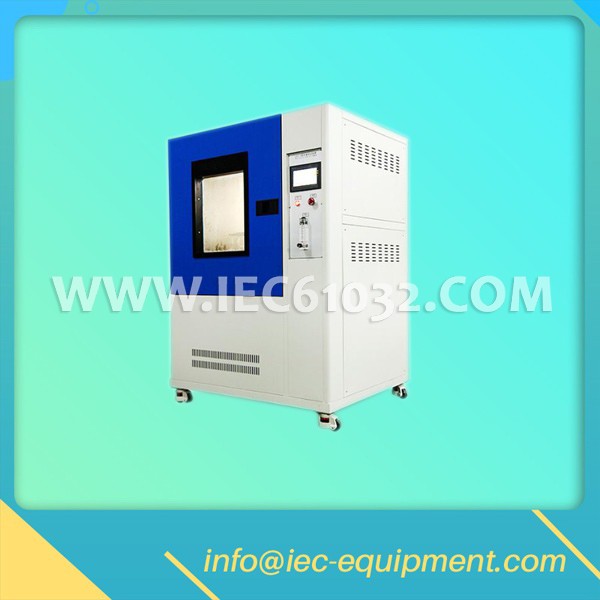

IPX1 IPX2 Rain Spray Test Cabinet

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: IEC60529
Item No.: LX-IPX12A-600
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

Test standard:

IPX1 IPX2 Rain Spray Test Cabinet is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX1/2.

Application:

IPX1 IPX2 Rain Spray Test Cabinet applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.

Features:

1, S304 stainless steel water box and test chamber;

2, Box-type structure, water recycling;

3, Observation window: making use of tempered glass, durable;

4, A drop of rain flow: Frequency adjustable, adjusted manually;

5, Test nozzle: Stainless steel nozzle orifices can be replaced at any time according to requirements of the standard aperture.

6, Filter Action: Device standard filter to prevent clogging of the pinhole; the filter can be replaced periodically;

7, One key to start, automatic shutdown, simple intelligence.

Technical parameters:

Item No.	LX-IPX12A-600
Inner size of the work room	8008001000 mm
Overall size of test chamber	122010001750 mm
Dripping area	600*600 mm
Put the tube aperture water	0.4 mm of Diameter
Distance between the hole	20*20 mm
Test bench speed	1 r/min
Test bench diameter	600 mm
Test bench up-down adjustment range	350-700 mm
Test bench adjustable tilt range	15°
Testing time	10 min
Test Chamber Voltage	220V
Sample Voltage	220V
Power	1.0 KW
