E14 Plug Gauge for Lampholder with Candle Shaped Shaft for Candle Lamps for Testing Contact Making 7006-30A-1

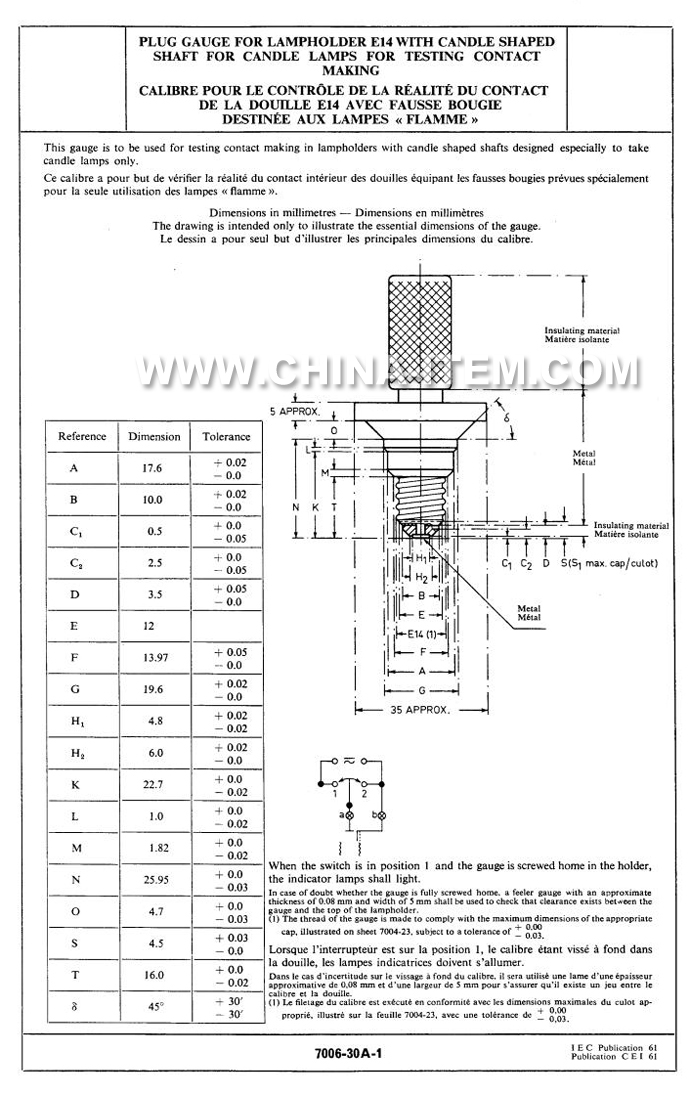

IEC60061-3: 7006-30A-1 Plug Gauge for Lampholder E14 with Candle Shaped Shaft for Candle Lamps for Testing Contact Making

This gauge is to be used for testing contact making in lampholders with candle shaped shafts designed

especially to take candle lamps only.

The drawing is intended only to illustrate the essential dimensions of the gauge.

When the switch is in position 1 and the gauge is screwed home in the holder, the indicator lamps

shall light.

In case of doubt whether the gauge is fully screwed home, a feeler gauge with an approximate thickness

of 0.08 mm and width of 5 mm shall be used to check that clearance exists between the gauge and the

top of the lampholder.
(1) the thread of the gauge is made to compty with the maximum dimensions of the appropriate cap,

illustrated on sheet 7004-23, subject to a tolerance of +0.00 -0.03.
