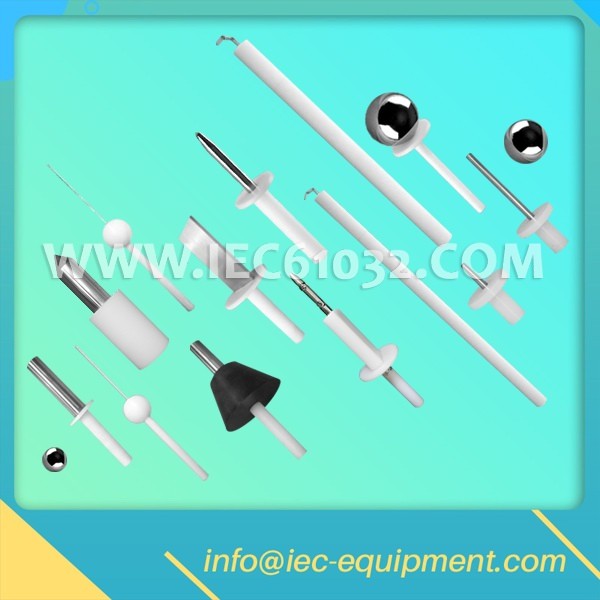

IEC 61032 Test Probes for Verification and Testing The Protection Against Access to Hazardous Parts

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard:
Item No.: LX-61032
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

Model	Describe	Reference standard	Specification
LX-1201	IEC 61032 Figure 1 - Test probe A	IEC60529 IEC61032	Ball diameter: 50 mm Baffle plate diameter: 45 mm Baffle plate thickness: 4 mm Handle diameter: 10 mm Handle length: 100 mm Material: Nylon + stainless steel
LX-1202	IEC 61032 Figure 2 - Test probe B	IEC60529 IEC61032 IEC60335 IEC60884 IEC60745 IEC60045 IEC60950 IEC60238 IEC60601 IEC60968 IEC61010 IEC60065	Knurled finger diameter: 12 mm Knurler finger length: 80 mm Baffle plate diameter: 50 mm Baffle plate length: 100 mm Baffle thickness: 20 mm
LX-1203	IEC 61032 Figure 3 - Test probe C	IEC61032 IEC60529	Test probe length: 100 mm Test probe diameter: 2.5 mm Dam-sphere diameter: 35 mm Handle diameter: 10 mm Handle length: 100 mm Material: Nylon + hardened steel
LX-1204	IEC 61032 Figure 4 - Test probe D	IEC61032 IEC60529	Test probe length: 100 mm Test probe diameter: 1 mm Dam-sphere diameter: 35 mm Handle diameter: 10 mm Handle length: 100 mm Material: Nylon + hardened steel
LX-B500	IEC 61032 Figure 5 – Test probe 1	IEC61032	Diameter: 50 mm Weight: 500 g
LX-B015	IEC 61032 Figure 6 – Test probe 2	IEC61032	Diameter: 12.5 mm Weight: 15 g
LX-1211	IEC 61032 Figure 7 – Test probe 11	IEC61032 IEC60065 IEC60335-1 IEC60884-1 IEC60238 IEC60950 IEC61010	Nodular Finger length: 80 mm Nodular Finger diameter: 12 mm Dam-board diameter: 50 mm Dam-board thickness: 5 mm Material: Nylon and stainless steel
LX-1213	IEC 61032 Figure 9 – Test probe 13	IEC60065 IEC60335-1 IEC60950 IEC61302 IEC60601 IEC60745	Test probe diameter: head 3 mm, tail 4 mm Test probe length: 15 mm Dam-board diameter: 25 mm Dam-board thickness: 5 mm Material: Handle is made of Nylon, tip is stainless steel
LX-1212	IEC 61032 Figure 8 – Test probe 12	IEC61032	Test probe diameter: 4 mm Test probe length: 50 mm Dam-board diameter: 25 mm Dam-board thickeness: 4 mm Material: Handle is made of Nylon, tip is stainless steel
LX-1219	IEC 61032 Figure 13 – Test probe 19 (small finger probe Φ 5.6)	IEC61032 EN71 ASTM F963	Knurled finger diameter: φ5.6 mm Head radius: 2.8 mm Knurled finger length: 44 mm(Three knurls,16.7 mm knurl) Material: Nylon and stainless steel
LX-1218	IEC 61032 Figure 12 – Test probe 18 (small finger probe Φ 8.6)	IEC61032 EN71 ASTM F963	Knurled finger diameter: φ8.6 mm Head radius: 4.3 mm Knurled finger length: 57.9 mm (Three knurls,19.3 mm knurl) Material: Nylon and stainless steel
LX-1231	IEC 61032 Figure 14 – Test probe 31	IEC61032	Test Rod diameter: φ25 mm Rigid Finger length: 80 mm Dam-board diameter: 60-110 mm
LX-1232	IEC 61032 Figure 15 – Test probe 32	IEC61032	Test Rod diameter: φ25 mm Dam-board diameter: 50 mm
LX-1241	IEC 61032 Figure 16 – Test probe 41	IEC61032	Test Rod diameter: 30 mm Rigid Finger length: 80 mm Handle diameter: 50 mm Handle length: 80 mm
LX-1243	IEC 61032 Figure 17 – Test probe 43	IEC61032	Bar wide: 50 mm Thickness: 5 mm
