GX53 Go and Not Go Gauge for Caps 7006-142-1

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: IEC60061-3
Item No.: 7006-142-1
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

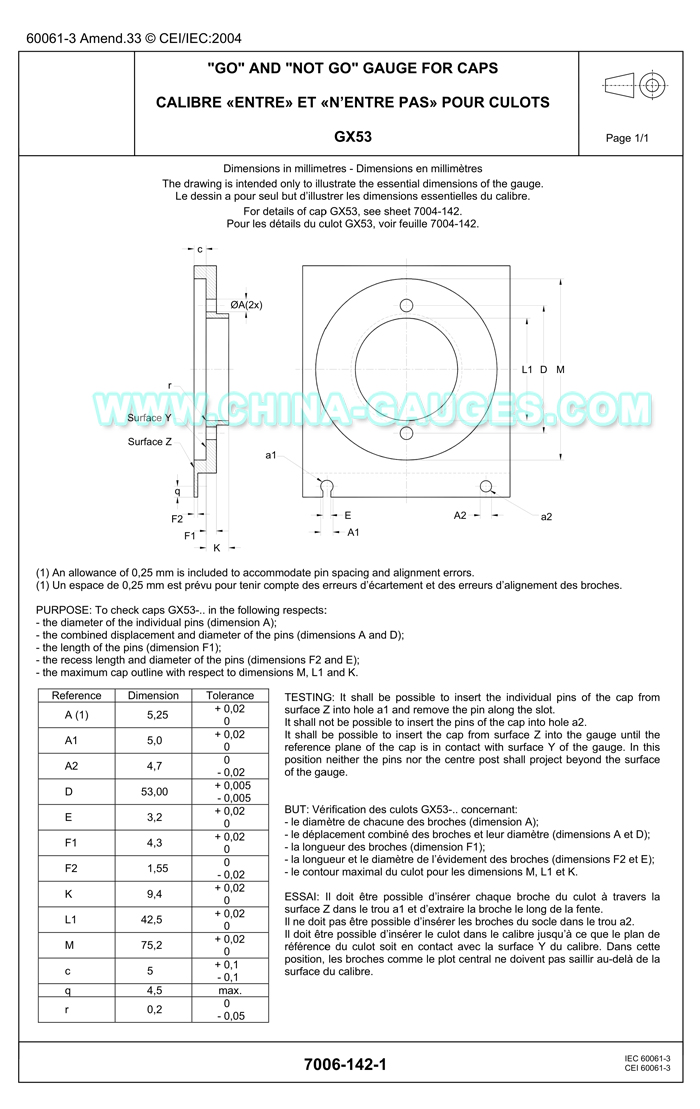

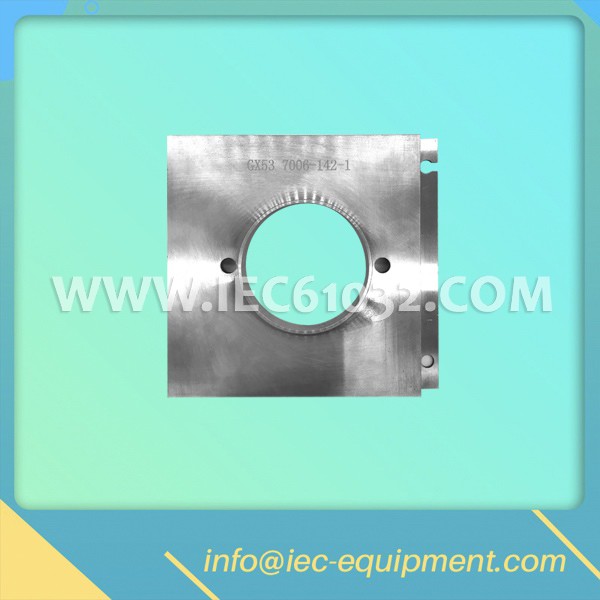

7006-142-1 GX53 Go and Not Go Gauge for Caps

PURPOSE:

To check caps GX53-.. in the following respects:
- the diameter of the individual pins (dimension A);
- the combined displacement and diameter of the pins (dimensions A and D);
- the length of the pins (dimension F1);
- the recess length and diameter of the pins (dimensions F2 and E);
- the maximum cap outline with respect to dimensions M, L1 and K.

TESTING:

It shall be possible to insert the individual pins of the cap from surface Z into hole a1 and remove the pin along the slot.
It shall not be possible to insert the pins of the cap into hole a2.
It shall be possible to insert the cap from surface Z into the gauge until the reference plane of the cap is in contact with surface Y of the gauge. In this position neither the pins nor the centre post shall project beyond the surface of the gauge.
