GX53 Go and No Go Gauge for Caps

Photos

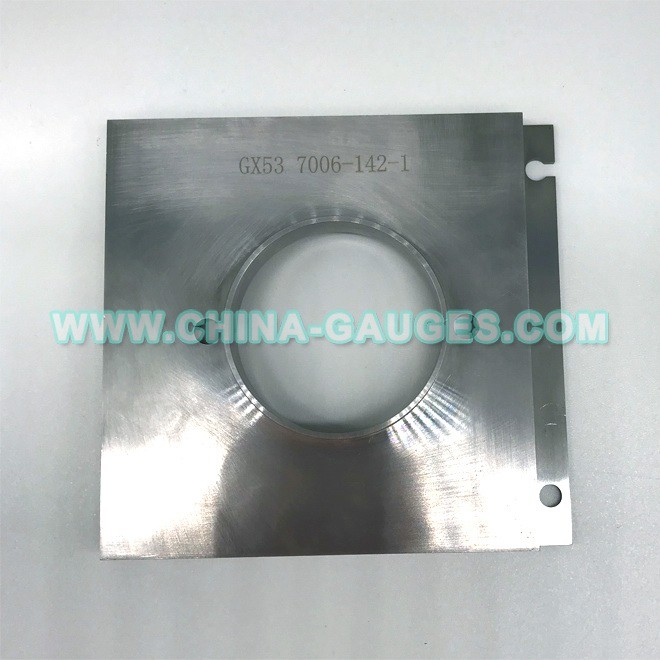

Go and not go gauge for caps GX53, 7006-142-1;

Purpose:

To check caps GX53-.. in the following respects:

- the diameter of the individual pins (dimension A);

- the combined displacement and diameter of the pins (dimension A and D);

- the length of the pins (dimension F1);

- the recess length and diameter of the pins (dimension F2 and E);

- the maximum cap outline with respect to dimensions M, L1 and K.

Testing:

It shall be possible to insert the individual pins of the cap from surface Z into hole a1 and remove the pin along the slot.

It shall not be possible to insert the pins of the cap into hole a2.

It shall be possible to insert the cap from surface Z into the gauge until the reference plane of the cap in contact with surface Y of the gauge. In this position neither the pins nor the centre post shall project beyond the surface of the gauge.
