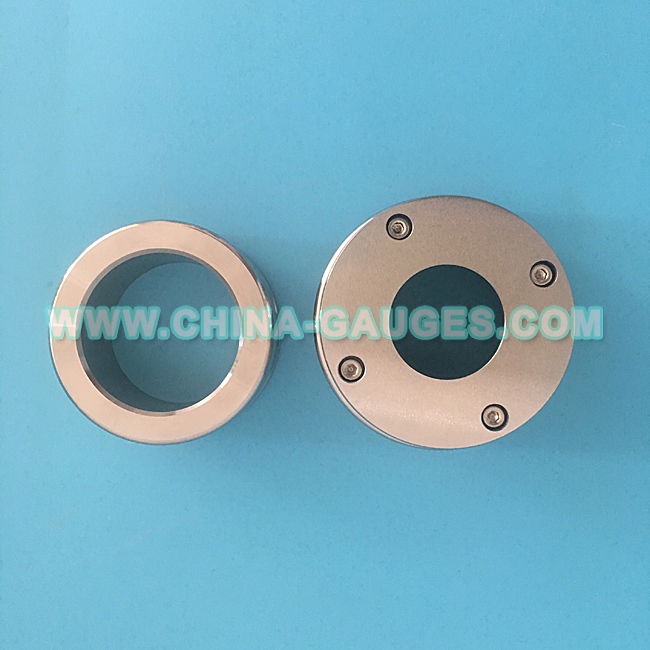

E39 Go No Go Gauges of Lamp Caps


E39 Go No Go Gauge of Finished Lamp Caps Include:

1) IEC60061-3 7006-24B-1 E39 Go Gauge for Caps on Finished Lamps;

PURPOSE: To check the maximun dimensions of the crew thread and dimension T1 min, of E39 caps on finished lamps.

TESTING: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact of the cap shall be co-planar with, or project beyond, surface X, When the lamp is being removed from the gauge, at least two fall turns shall be required to disengage the threads.

2) IEC60061-3: 7006-24C-1 E39 No Go Gauge for Caps on Finished Lamps;

PURPOSE: To check the minimum outside (major) diameter of the screw thread, dimension d, of E39 caps on finished lamps.

TESTING: When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.

Note. - This gauge may also be used for checking unmounted caps.
